利用zephyr搭建ipv6实验环境

本文介绍如何基于zephyr提供的模拟net环境建立ipv6实验环境。

zephyr提供了net-tools和qemu通讯，建立tap0网卡，可以很方便的用于用于ipv6的实验

net-tools 链接到标题

安装 链接到标题

git clone https://github.com/zephyrproject-rtos/net-tools
cd net-tools
make

问题处理: make时报错“monitor_15_4.c:34:23: fatal error: pcap/pcap.h: No such file or directory”，未安装libpcap,执行

 sudo apt-get install libpcap-dev

运行 链接到标题

  • 开启Terminal为#1执行
./loop-socat.sh

问题处理： 会一直报“./loop-socat.sh: 31: ./loop-socat.sh: socat: not found”，未安装socat，执行

sudo apt-get install socat
  • 开启Terminal为#2执行
sudo ./loop-slip-tap.sh

此时在Terminal可以看到如下信息，说明虚拟网卡tap0已经建立成功

********SLIP started on ``/tmp/slip.dev''
slipfd and inslip reopened
ip neigh flush dev tap0
Cannot find device "tap0"
opened tap device ``/dev/tap0''
ifconfig tap0 up
ip -6 route add 2001:db8::/64 dev tap0
ip -6 addr add 2001:db8::2/64 dev tap0
ip route add 192.0.2.0/24 dev tap0
ip addr add 192.0.2.2/24 dev tap0
ifconfig tap0

tap0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.0.2.2  netmask 255.255.255.0  broadcast 0.0.0.0
        inet6 2001:db8::2  prefixlen 64  scopeid 0x0<global>
        inet6 fe80::8c6b:33ff:fe41:d663  prefixlen 64  scopeid 0x20<link>
        ether 8e:6b:33:41:d6:63  txqueuelen 1000  (以太网)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

can't open siodev ``/tmp/slip.dev''
********SLIP started on ``/tmp/slip.dev''
slipfd and inslip reopened
ip neigh flush dev tap0

Qemu运行 链接到标题

在zephyr设置好的情况下，执行下面命令

cd $ZEPHYR_BASE/samples/net/http_server
mkdir build && cd build
cmake -GNinja -DBOARD=qemu_x86 ..
ninja run

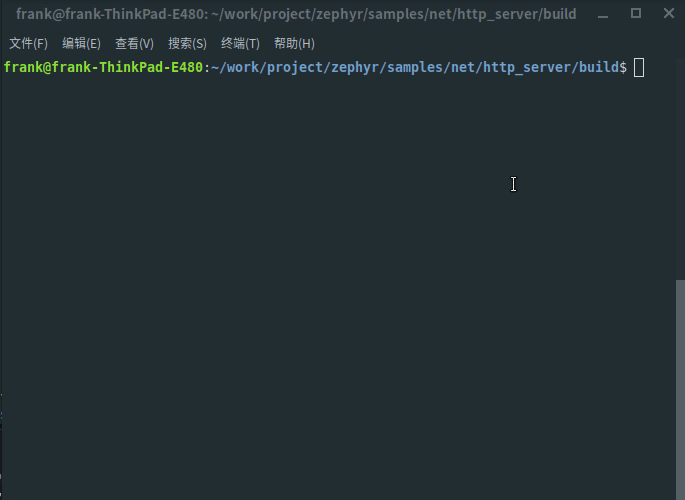

启动的Qemu将运行起zephyr，在zephyr shell中执行net iface就可以看见Qemu的ipv6和ipv4地址了,如下 net

  • 在终端当中执行如下命令能正常ping通
ping6 -I 2001:db8::1
  • 在chrome中输入
http://[2001:db8::1]/index.html

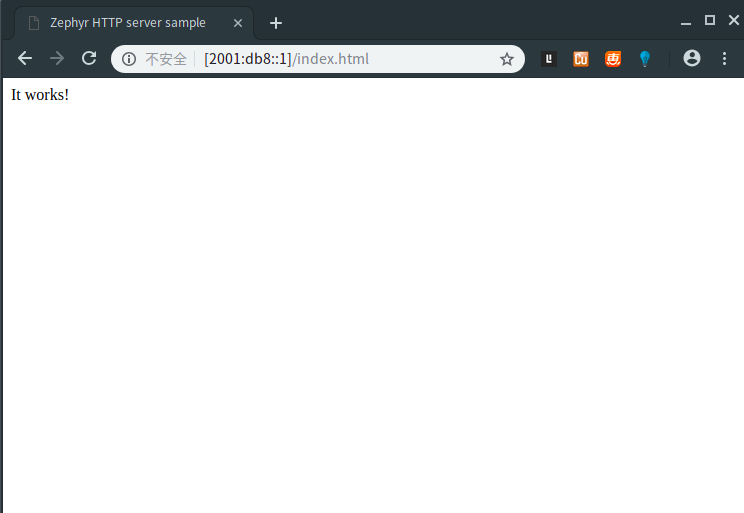

能看见 ipv6

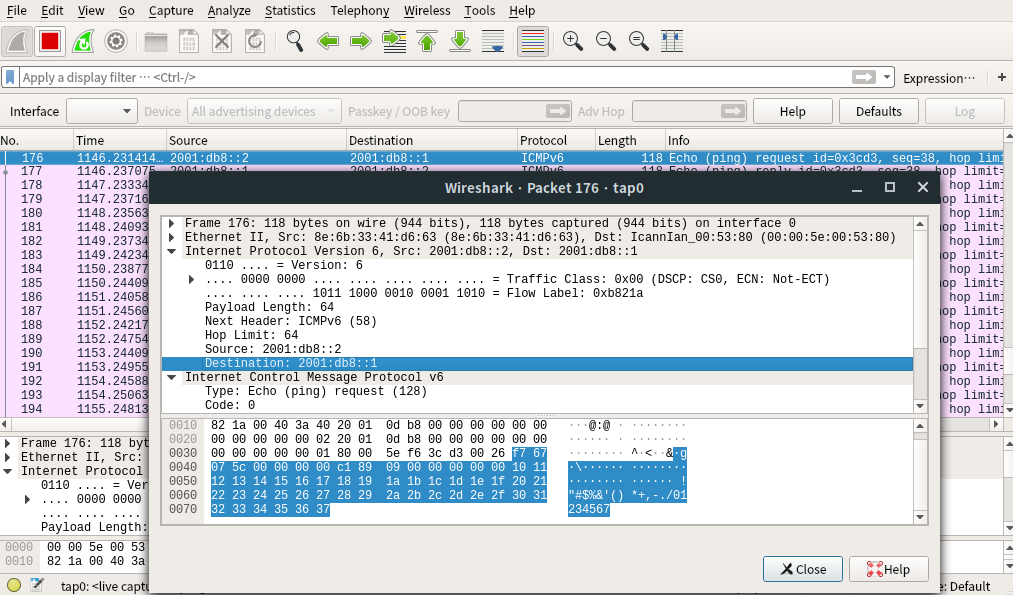

以上过程中，用wireshark对网卡tap0进行抓包，可以分析ipv6数据，例如ping6的抓包： ping6

参考 链接到标题

https://docs.zephyrproject.org/latest/subsystems/networking/qemu_setup.html#networking-with-qemu https://docs.zephyrproject.org/latest/samples/net/http_server/README.html
